SAE对焊法兰 无槽
sae-straight-4-bolt-counter-flange-butt-weld
型号: 12TDH3
¥0.00
库存:
SAE对焊法兰 无槽 产品明细
当前选择：12TDH3
压力等级：3000PSI
SAE对焊法兰 无槽产品详情
暂无详细描述
SAE对焊法兰 无槽规格尺寸对照表

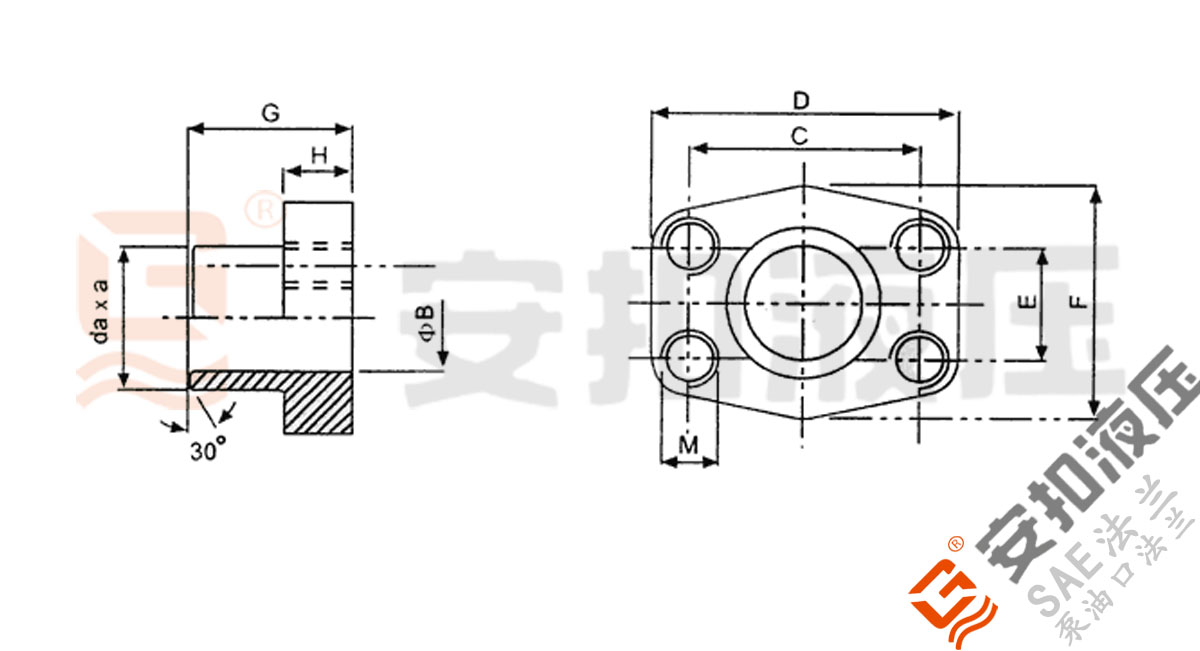

SAE对焊法兰 无槽产品图纸
12TDH3 型号说明：
暂无型号说明
Ordering code: 订货说明
| Carbon steel 碳钢 | Stainless steel 不锈钢 | |
|---|---|---|
|
Flange only 只有法兰
|
SAE对焊法兰 无槽 - 3000PSI
| Normal Size inch |
编号 Type |
尺寸 Measurement | 单重 kg |
最大工作 压力 Kg/cm² |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | D | E | F | G | H | M | da×s | ||||
| 3/4" | 12TDH3 | 27.00 | 48 | 65.00 | 22.23 | 50.00 | 36.00 | M10 | 25×3、28×4.5 | 0.39 | 345 |
| 1" | 16TDH3 | 34.00 | 52 | 70.00 | 26.19 | 55.00 | 38.00 | M10 | 30×4、34×4.5 | 0.46 | 345 |
| 1-1/4" | 20TDH3 | 42.00 | 59 | 79.00 | 30.18 | 68.00 | 41.00 | M10 | 38×4、42.8×5.5 | 0.66 | 276 |
| 1-1/2" | 24TDH3 | 48.00 | 70 | 93.00 | 35.71 | 78.00 | 45.00 | M12 | 42.4×4、48.6×5.5 | 1.05 | 207 |
| 2" | 32TDH3 | 60.00 | 78 | 102.00 | 42.88 | 90.00 | 45.00 | M12 | 60.3×4、61×5.5 | 1.09 | 207 |
| 2-1/2" | 40TDH3 | 76.00 | 89 | 114.00 | 50.80 | 105.00 | 50.00 | M12 | 76.1×4、77×7.1 | 1.40 | 172 |
| 3" | 48TDH3 | 76.00 | 106 | 135.00 | 61.93 | 124.00 | 50.00 | M16 | 76.1×4、89×4、92×9 | 2.15 | 138 |
| 3-1/2" | 56TDH3 | 89.00 | 121 | 152.00 | 69.85 | 136.00 | 48.00 | M16 | 89×4、103×7 | 2.40 | 35 |
| 4" | 64TDH3 | 114.00 | 130 | 162.00 | 77.77 | 146.00 | 48.00 | M16 | 114.3×4、115.5×8 | 2.85 | 35 |
| 5" | 80TDH3 | 140.00 | 152 | 184.00 | 92.08 | 180.00 | 50.00 | M16 | 140×4.5、140×6.5、140×10.5 | 4.00 | 35 |
| 1/2" | 8TDH3 | 20.00 | 38 | 54.00 | 17.48 | 46.00 | 36.00 | M8 | 16×2.5、21.6×4.3 | 0.28 | 345 |
SAE对焊法兰 无槽 - 6000PSI
| Normal Size inch |
编号 Type |
尺寸 Measurement | 单重 kg |
最大工作 压力 Kg/cm² |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| C | D | E | F | G | H | M | da×s | ||||
| 3/4" | 12TDH6 | 26.00 | 51 | 71.00 | 23.80 | 55.00 | 36.00 | M10 | 20×3、26.9×3.6 | 0.65 | 400 |
| 1" | 16TDH6 | 32.00 | 57 | 81.00 | 27.76 | 65.00 | 42.00 | M12 | 25×4、33.7×7.1 | 1.05 | 400 |
| 1-1/4" | 20TDH6 | 40.00 | 67 | 95.00 | 31.75 | 78.00 | 45.00 | M14 | 30×5、42.4×8.8 | 1.53 | 400 |
| 1-1/2" | 24TDH6 | 60.00 | 79 | 112.00 | 36.50 | 94.00 | 50.00 | M16 | 48.3×8.8、48.6×5.5 | 1.90 | 400 |
| 2" | 32TDH6 | 61.00 | 97 | 134.00 | 44.45 | 114.00 | 65.00 | M20 | 60.3×10、61×9、76.1×12.5 | 3.45 | 400 |
| 1/2" | 8TDH6 | 20.00 | 40 | 54.00 | 18.24 | 46.00 | 36.00 | M8 | 16×2.5、21.6×4.3 | 0.35 | 400 |
