SAE90度焊接法兰有环槽

Name: SAE90度焊接法兰 有环槽
Brand: 安扣液压件

sae-90degree-4-bolt-flange-socket-weld

型号: 12WCC3-O

¥0.00 库存:

SAE90度焊接法兰有环槽产品明细

当前选择：12WCC3-O

压力等级：3000PSI

暂无详细描述

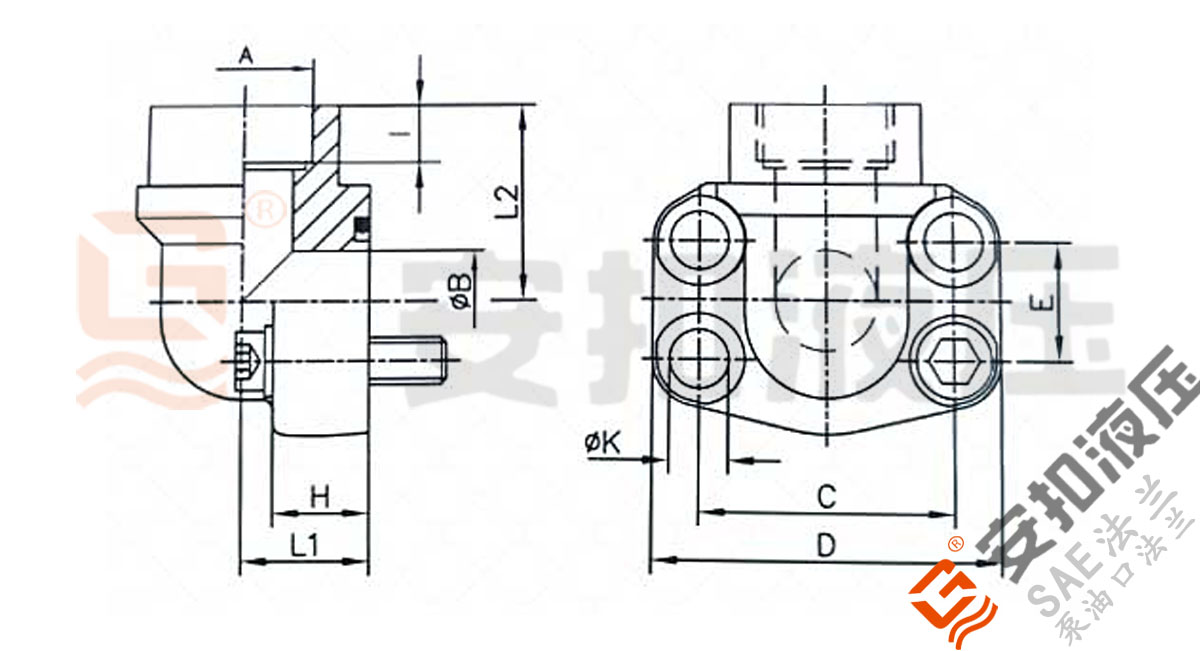

SAE90度焊接法兰有环槽产品图纸

暂无型号说明

	Carbon steel 碳钢	Stainless steel 不锈钢
Flange only 只有法兰 Flange only 只有法兰

SAE90度焊接法兰有环槽 - 3000PSI

Normal Size inch	编号 Type	尺寸 Measurement											配用附件 Accessories		单重 kg	最大工作压力 Kg/cm²
		A	B	C	D	E	H	I	K	L	L1	L2	螺栓 Bolt	O形圈 Oring
3/4"	12WCC3-O	27.20	19.00	47.63	65	22.23	18.00	10.00	11.00	63.00	24.00	38.00	M10x35	25.00ⅹ3.53	0.50	345
1"	16WCC3-O	34.00	25.00	52.37	70	26.19	19.00	12.00	11.00	70.00	28.00	43.00	M10x35	32.92ⅹ3.53	0.70	345
1-1/4"	20WCC3-O	42.80	32.00	58.72	79	30.18	21.00	14.00	11.00	85.00	34.00	51.00	M10x40	37.70ⅹ3.53	1.40	276
1-1/2"	24WCC3-O	48.60	38.00	69.85	93	35.71	25.00	16.00	13.50	95.00	38.00	55.00	M12x45	47.22ⅹ3.53	1.65	207
2"	32WCC3-O	61.00	51.00	77.77	102	42.88	25.00	18.00	13.50	110.00	42.00	65.00	M12x45	56.75ⅹ3.53	2.00	207
2-1/2"	40WCC3-O	76.60	60.00	88.90	115	50.80	25.00	30.00	13.50	50.00	77.00	50.00	M12*45	69.45ⅹ3.53	2.85	160
1/2"	8WCC3-O	21.60	13.00	38.10	54	17.48	16.00	10.00	9.00	60.00	20.00	37.00	M8x30	18.66ⅹ3.53	0.35	345

SAE90度焊接法兰有环槽 - 6000PSI

Normal Size inch	编号 Type	尺寸 Measurement											配用附件 Accessories		单重 kg	最大工作压力 Kg/cm²
		A	B	C	D	E	H	I	K	L	L1	L2	M	O形圈
3/4"	12WCC6-O	27.20	19.00	50.80	71	23.80	19.00	12.00	11.00	70.00	28.00	43.00	M10x35	25.00ⅹ3.53	0.80	400
1"	16WCC6-O	34.00	25.00	57.15	79	27.76	21.00	14.00	13.00	85.00	34.00	51.00	M12x40	32.92ⅹ3.53	1.10	400
1-1/4"	20WCC6-O	42.80	32.00	66.68	93	31.75	25.00	16.00	15.00	95.00	38.00	56.00	M14x45	37.70ⅹ3.53	1.50	400
1-1/2"	24WCC6-O	48.60	38.00	79.38	112	36.50	25.00	18.00	17.00	100.00	42.00	65.00	M16x50	47.22ⅹ3.53	2.80	400
2"	32WCC6-O	61.00	51.00	96.82	134	44.45	29.00	18.00	21.00	150.00	45.00	75.00	M20x65	56.75ⅹ3.53	4.00	400
1/2"	8WCC6-O	21.60	13.00	40.49	56	18.24	16.00	10.00	9.00	60.00	20.00	37.00	M8x30	18.66ⅹ3.53	0.35	400
