SAE低压承插焊接法兰有槽

Name: SAE低压承插焊接法兰 有槽
Brand: 安扣液压件

sae-straight-4-bolt-flange-flat-socket-weld

型号: 12PHJ-O

¥0.00 库存:

SAE低压承插焊接法兰有槽产品明细

当前选择：12PHJ-O

压力等级：500PSI

暂无详细描述

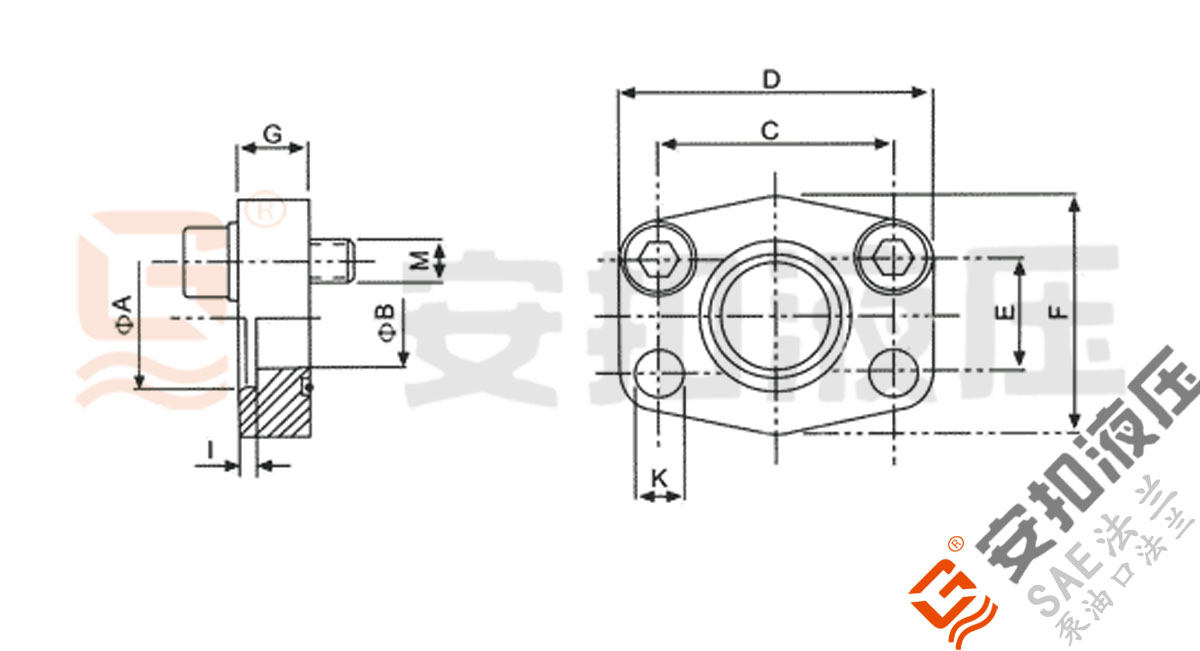

SAE低压承插焊接法兰有槽产品图纸

暂无型号说明

	Carbon steel 碳钢	Stainless steel 不锈钢
Flange only 只有法兰 Flange only 只有法兰

SAE低压承插焊接法兰有槽 - 3000PSI

Normal Size inch	编号 Type	尺寸 Measurement									配用附件 Accessories		单重 kg	最大工作压力 Kg/cm²
		A	B	C	D	E	F	G	I	K	螺栓 Bolt	O形圈 Oring
3/4"	12PHJ-O	27.20	20.00	47.63	65	22.23	50.00	12.00	4.00	11.00	M10x30	25.00ⅹ3.53	0.20	40
1"	16PHJ-O	34.00	29.00	52.37	70	26.19	55.00	12.00	4.00	11.00	M10x30	32.92ⅹ3.53	0.25	40
1-1/4"	20PHJ-O	42.80	34.00	58.72	79	30.18	68.00	12.00	4.00	11.50	M10x30	37.70ⅹ3.53	0.31	40
1-1/2"	24PHJ-O	48.60	42.00	69.85	93	35.71	78.00	15.00	4.00	13.50	M12x35	47.22ⅹ3.53	0.50	40
2"	32PHJ-O	61.00	53.00	77.77	102	42.88	90.00	15.00	4.00	13.50	M12x35	56.75ⅹ3.53	0.59	40
2-1/2"	40PHJ-O	76.60	64.00	88.90	114	50.80	105.00	15.00	4.00	13.50	M12x35	69.45ⅹ3.53	0.72	40
3"	48PHJ-O	90.50	80.00	106.38	134	61.93	124.00	20.00	5.00	17.00	M16x40	85.32ⅹ3.53	1.25	40
3-1/2"	56PHJ-O	103.00	93.00	120.65	152	69.85	136.00	20.00	5.00	17.00	M16x40	98.02ⅹ3.53	1.50	35
4"	64PHJ-O	115.50	105.00	130.18	162	77.77	146.00	25.00	6.00	17.00	M16x45	110.72ⅹ3.53	2.15	35
5"	80PHJ-O	142.00	126.00	152.40	190	92.08	180.00	28.00	8.00	17.00	M16x45	136.12ⅹ3.53	3.00	35
1/2"	8PHJ-O	21.60	15.00	38.10	54	17.48	46.00	10.00	3.00	9.00	M8x25	18.66ⅹ3.53	0.12	40
