SAE90度螺纹法兰 G螺纹带环槽

Name: SAE90度螺纹法兰 G螺纹 带环槽
Brand: 安扣液压件

sae-90-degree-4-bolt-flange-with-g-thread

型号: 12WGLW3-O

¥0.00 库存:

SAE90度螺纹法兰 G螺纹带环槽产品明细

当前选择：12WGLW3-O

压力等级：3000PSI

暂无详细描述

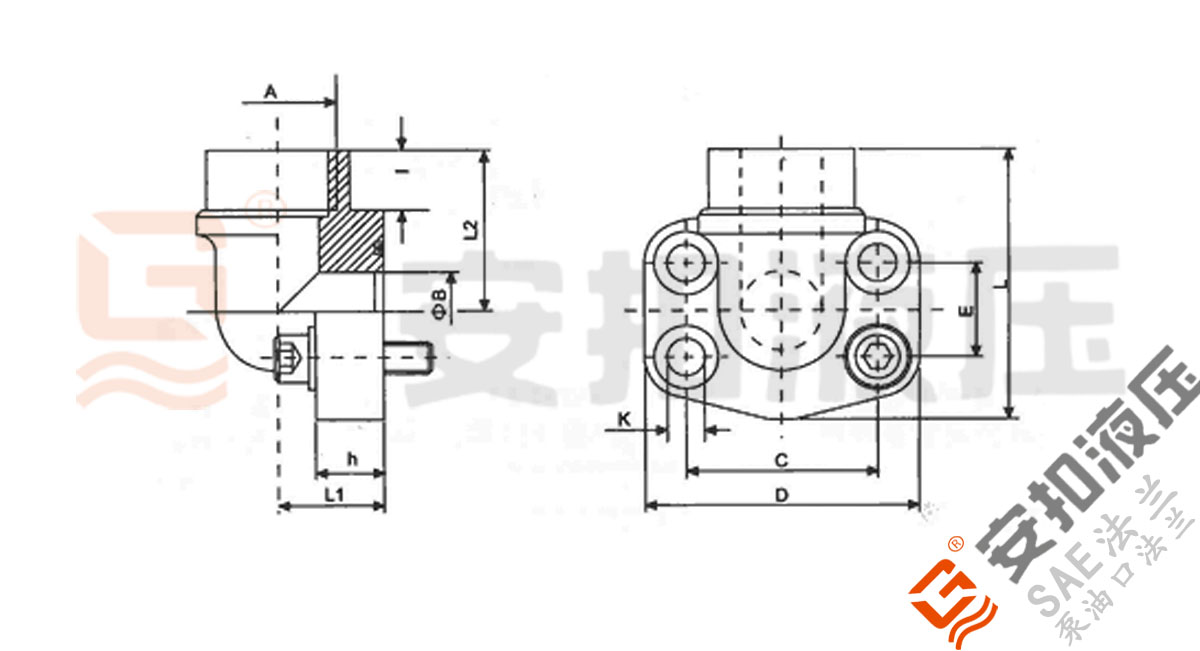

SAE90度螺纹法兰 G螺纹带环槽产品图纸

暂无型号说明

	Carbon steel 碳钢	Stainless steel 不锈钢
Flange only 只有法兰 Flange only 只有法兰

SAE90度螺纹法兰 G螺纹带环槽 - 3000PSI

Normal Size inch	编号 Type	尺寸 Measurement										配用附件 Accessories		单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	H	I	K	L1	L2	螺栓 Bolt	O形圈 Oring
3/4"	12WGLW3-O	G 3/4"	19.00	47.63	65	22.23	18.00	18.00	11.00	24.00	39.00	M10x35	25.00ⅹ3.53	0.49	350
1"	16WGLW3-O	G 1"	25.00	52.37	70	26.19	19.00	19.00	11.00	28.00	44.00	M10x35	32.92ⅹ3.53	0.71	315
1-1/4"	20WGLW3-O	G 1-1/4"	32.00	58.72	79	30.18	21.00	22.00	11.50	34.00	52.00	M10x40	37.70ⅹ3.53	1.00	250
1-1/2"	24WGLW3-O	G 1-1/2"	38.00	69.85	93	35.72	25.00	24.00	13.50	38.00	57.00	M12x45	47.22ⅹ3.53	1.47	200
2"	32WGLW3-O	G 2"	51.00	77.77	102	42.88	25.00	27.00	13.50	42.00	65.00	M12x45	56.75ⅹ3.53	1.82	200
2-1/2"	40WGLW3-O	G 2-1/2"	60.00	88.90	115	50.80	25.00	30.00	13.50	50.00	77.00	M12x45	69.45ⅹ3.53	2.92	160
1/2"	8WGLW3-O	G 1/2"	13.00	38.10	54	17.48	16.00	18.00	9.00	20.00	37.00	M8x30	18.66ⅹ3.53	0.35	350

SAE90度螺纹法兰 G螺纹带环槽 - 6000PSI

Normal Size inch	编号 Type	尺寸 Measurement										配用附件 Accessories		单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	H	I	K	L1	L2	M	O形圈
3/4"	12WGLW6-O	G 3/4"	19.00	50.80	71	23.80	19.00	19.00	11.00	28.00	43.00	M10x35	25.00ⅹ3.53	0.71	400
1"	16WGLW6-O	G 1"	25.00	57.15	79	27.76	21.00	20.00	13.00	34.00	51.00	M12x40	32.92ⅹ3.53	0.97	400
1-1/4"	20WGLW6-O	G 1-1/4"	32.00	66.68	93	31.75	25.00	22.00	15.00	38.00	56.00	M14x45	37.70ⅹ3.53	1.38	400
1-1/2"	24WGLW6-O	G 1-1/2"	38.00	79.38	110	36.50	25.00	25.00	17.00	42.00	65.00	M16x50	47.22ⅹ3.53	2.12	400
2"	32WGLW6-O	G 2"	51.00	96.82	134	44.45	33.00	28.00	21.00	45.00	75.00	M20x65	56.75ⅹ3.53	3.60	400
1/2"	8WGLW6-O	G 1/2"	13.00	40.49	56	18.24	16.00	19.00	9.00	20.00	38.00	M8x30	18.66ⅹ3.53	0.39	400
