SAE内螺纹法兰无槽 G螺纹

Name: SAE内螺纹法兰 无槽 G螺纹
Brand: 安扣液压件

sae-straight-4-bolt-flange-with-bspp-thread

型号: 12TGLW3

¥0.00 库存:

SAE内螺纹法兰无槽 G螺纹产品明细

当前选择：12TGLW3

压力等级：3000PSI

暂无详细描述

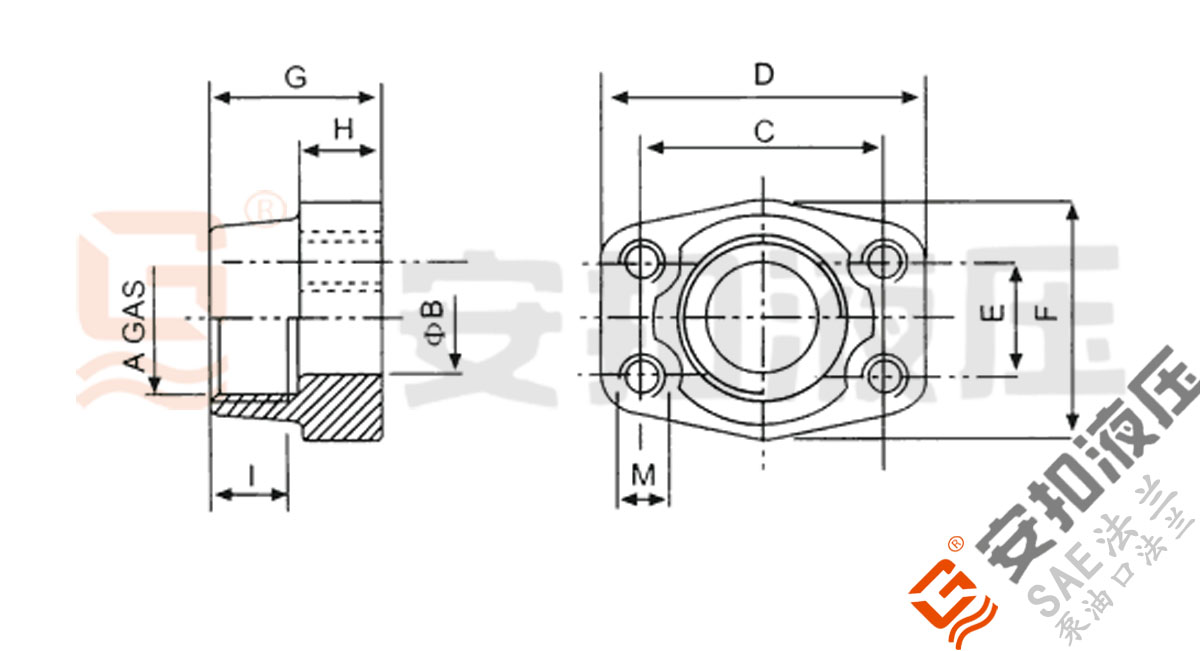

SAE内螺纹法兰无槽 G螺纹产品图纸

暂无型号说明

	Carbon steel 碳钢	Stainless steel 不锈钢
Flange only 只有法兰 Flange only 只有法兰

SAE内螺纹法兰无槽 G螺纹 - 3000PSI

Normal Size inch	编号 Type	尺寸 Measurement										单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	F	G	H	I	M
3/4"	12TGLW3	G 3/4"	19.00	47.63	65	22.23	50.00	36.00	18.00	19.00	M10	0.39	345
1"	16TGLW3	G 1"	25.00	52.37	70	26.19	55.00	38.00	18.00	19.00	M10	0.46	345
1-1/4"	20TGLW3	G 1-1/4"	32.00	58.72	79	30.18	68.00	41.00	21.00	22.00	M10	0.66	276
1-1/2"	24TGLW3	G 1-1/2"	38.00	69.85	93	35.71	78.00	45.00	25.00	24.00	M12	1.05	207
2"	32TGLW3	G 2"	51.00	77.77	102	42.88	90.00	45.00	25.00	26.00	M12	1.19	207
2-1/2"	40TGLW3	G 2-1/2"	63.00	88.90	114	50.80	105.00	50.00	25.00	30.00	M12	1.40	172
3"	48TGLW3	G 3"	73.00	106.38	134	61.93	124.00	50.00	27.00	34.00	M16	2.15	138
3-1/2"	56TGLW3	G3-1/2"	89.00	120.65	152	69.85	136.00	48.00	27.00	34.00	M16	2.50	35
4"	64TGLW3	G4"	99.00	130.18	162	77.77	146.00	48.00	27.00	34.00	M16	2.90	35
5"	80TGLW3	G5"	120.00	152.40	184	92.08	180.00	50.00	28.00	30.00	M16	4.00	35
1/2"	8TGLW3	G 1/2"	13.00	38.10	54	17.48	46.00	36.00	16.00	19.00	M8	0.25	345

SAE内螺纹法兰无槽 G螺纹 - 6000PSI

Normal Size inch	编号 Type	尺寸 Measurement										单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	F	G	H	I	M
3/4"	12TGLW6	G 3/4"	19.00	50.80	71	23.80	55.00	36.00	21.00	22.00	M10	0.50	400
1"	16TGLW6	G 1"	25.00	57.15	81	27.78	65.00	42.00	25.00	22.00	M12	0.76	400
1-1/4"	20TGLW6	G 1-1/4"	32.00	66.68	95	31.75	78.00	45.00	27.00	25.00	M14	1.20	400
1-1/2"	24TGLW6	G 1-1/2"	38.00	79.38	112	36.50	94.00	50.00	30.00	28.00	M16	1.90	400
2"	32TGLW6	G 2"	51.00	96.82	134	44.45	114.00	65.00	37.00	32.00	M20	3.45	400
2-1/2"	40TGLW6	G 2-1/2"	63.00	123.83	180	58.73	152.00	80.00	45.00	34.00	M24	8.30	400
3"	48TGLW6	G 3"	73.00	152.40	208	71.43	178.00	90.00	55.00	38.00	M30	13.50	400
1/2"	8TGLW6	G 1/2"	13.00	40.49	54	18.24	46.00	36.00	16.00	19.00	M8	0.26	400
