SAE90度螺纹法兰 NPT螺纹带环槽

Name: SAE90度螺纹法兰 NPT螺纹 带环槽
Brand: 安扣液压件

sae-90-degree-4-bolt-flange-with-npt-thread

型号: 12WNLW3-O

¥0.00 库存:

SAE90度螺纹法兰 NPT螺纹带环槽产品明细

当前选择：12WNLW3-O

压力等级：3000PSI

暂无详细描述

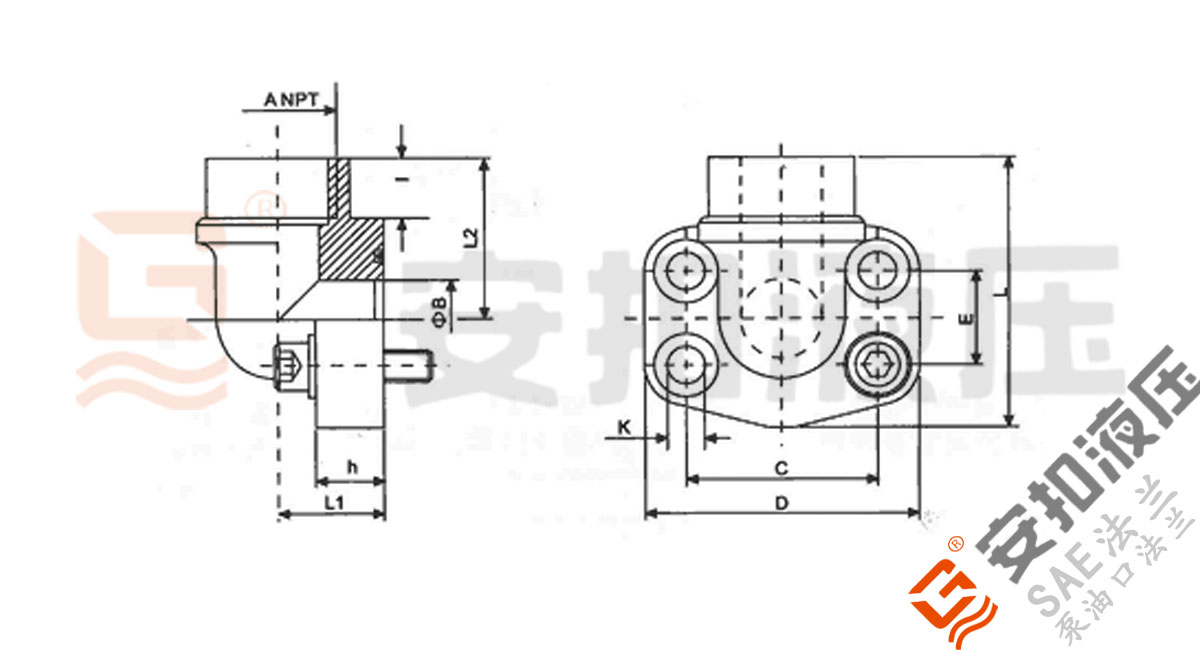

SAE90度螺纹法兰 NPT螺纹带环槽产品图纸

暂无型号说明

	Carbon steel 碳钢	Stainless steel 不锈钢
Flange only 只有法兰 Flange only 只有法兰

SAE90度螺纹法兰 NPT螺纹带环槽 - 3000PSI

Normal Size inch	编号 Type	尺寸 Measurement										配用附件 Accessories		单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	H	I	K	L1	L2	螺栓 Bolt	O形圈 Oring
3/4"	12WNLW3-O	NPT 3/4"	19.00	47.63	65	22.23	18.00	19.00	11.00	24.00	38.00	M10x35	25.00ⅹ3.53	0.50	345
1"	16WNLW3-O	NPT 1"	25.00	52.37	70	26.19	19.00	22.00	11.00	28.00	43.00	M10x35	32.92ⅹ3.53	0.70	345
1-1/4"	20WNLW3-O	NPT 1-1/4"	32.00	58.72	79	30.18	21.00	22.00	11.00	34.00	51.00	M10x40	37.70ⅹ3.53	1.20	276
1-1/2"	24WNLW3-O	NPT 1-1/2"	38.00	69.85	93	35.71	25.00	25.00	13.50	38.00	56.00	M12x45	47.22ⅹ3.53	1.50	207
2"	32WNLW3-O	NPT 2"	51.00	77.77	102	42.88	25.00	28.00	13.50	42.00	65.00	M12x45	56.75ⅹ3.53	2.00	207
2-1/2"	40WNLW3-O	NPT 2-1/2"	60.00	88.90	115	50.80	25.00	30.00	13.50	50.00	77.00	M12x45	69.45ⅹ3.53	2.92	160
1/2"	8WNLW3-O	NPT 1/2"	13.00	38.10	54	17.48	16.00	19.00	9.00	20.00	37.00	M8x30	18.66ⅹ3.53	0.35	345

SAE90度螺纹法兰 NPT螺纹带环槽 - 6000PSI

Normal Size inch	编号 Type	尺寸 Measurement										配用附件 Accessories		单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	H	I	K	L1	L2	M	O形圈
3/4"	12WNLW6-O	NPT 3/4"	19.00	50.80	70	23.80	19.00	19.00	11.00	28.00	43.00	M10x35	25.00ⅹ3.53	0.80	400
1"	16WNLW6-O	NPT 1"	25.00	57.15	79	27.76	21.00	20.00	13.00	34.00	51.00	M12x40	32.92ⅹ3.53	1.00	400
1-1/4"	20WNLW6-O	NPT 1-1/4"	32.00	66.68	93	31.77	25.00	22.00	15.00	38.00	56.00	M14x45	37.70ⅹ3.53	1.50	400
1-1/2"	24WNLW6-O	NPT 1-1/2"	38.00	79.38	110	36.50	25.00	25.00	17.00	42.00	65.00	M16x50	47.22ⅹ3.53	2.80	400
2"	32WNLW6-O	NPT 2"	51.00	96.82	134	44.45	29.00	28.00	21.00	45.00	75.00	M20x65	56.75ⅹ3.53	4.00	400
1/2"	8WNLW6-O	NPT 1/2"	13.00	40.49	56	18.24	16.00	19.00	9.00	20.00	37.00	M8x30	18.66ⅹ3.53	0.35	400
