SAE螺纹法兰 NPT螺纹带环槽

Name: SAE螺纹法兰 NPT螺纹 带环槽
Brand: 安扣液压件

sae-female-npt-thread-flange

型号: 12TNLW3-O

¥0.00 库存:

SAE螺纹法兰 NPT螺纹带环槽产品明细

当前选择：12TNLW3-O

压力等级：3000PSI

暂无详细描述

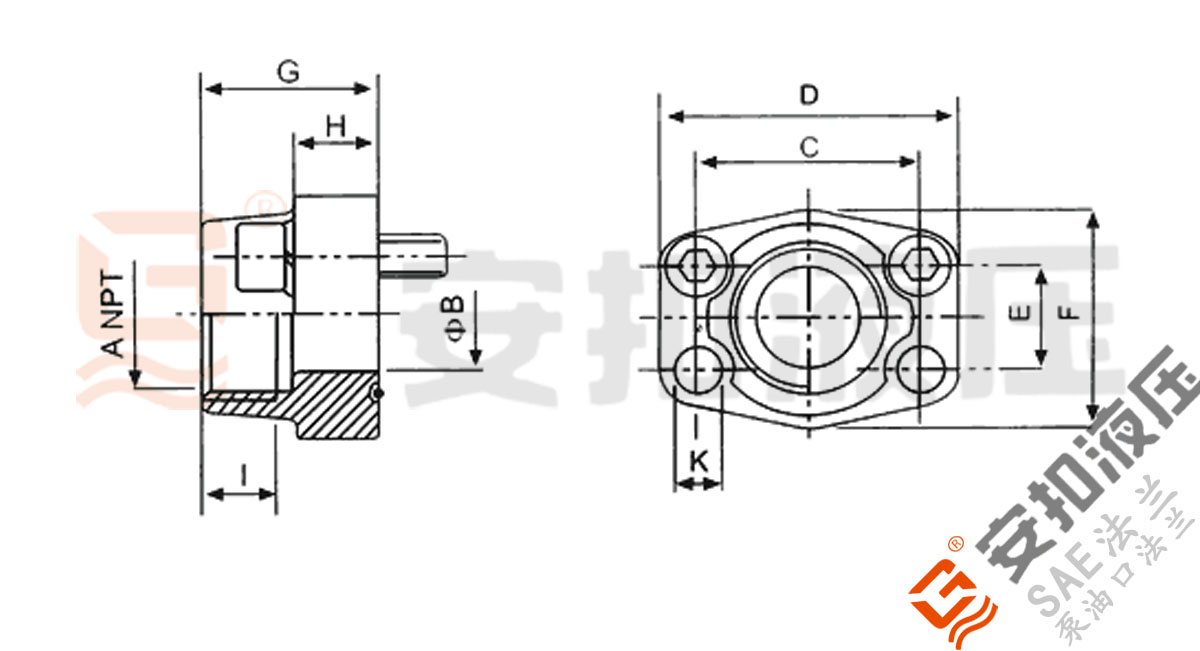

SAE螺纹法兰 NPT螺纹带环槽产品图纸

暂无型号说明

	Carbon steel 碳钢	Stainless steel 不锈钢
Flange only 只有法兰 Flange only 只有法兰

SAE螺纹法兰 NPT螺纹带环槽 - 3000PSI

Normal Size inch	编号 Type	尺寸 Measurement										配用附件 Accessories		单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	F	G	H	I	K	螺栓 Bolt	O形圈 Oring
3/4"	12TNLW3-O	NPT 3/4"	19.00	47.63	65	22.23	50.00	36.00	18.00	19.00	11.00	M10x35	25.00ⅹ3.53	0.39	345
1"	16TNLW3-O	NPT 1"	25.00	52.37	70	26.19	55.00	38.00	18.00	19.00	11.00	M10x35	32.92ⅹ3.53	0.46	345
1-1/4"	20TNLW3-O	NPT 1-1/4"	32.00	58.72	79	30.18	68.00	41.00	21.00	22.00	11.50	M10x40	37.70ⅹ3.53	0.66	276
1-1/2"	24TNLW3-O	NPT 1-1/2"	38.00	69.85	93	35.71	78.00	45.00	25.00	24.00	13.50	M12x45	47.22ⅹ3.53	1.05	207
2"	32TNLW3-O	NPT 2"	51.00	77.77	102	42.88	90.00	45.00	25.00	26.00	13.50	M12x45	56.75ⅹ3.53	1.19	207
2-1/2"	40TNLW3-O	NPT 2-1/2"	63.00	88.90	114	50.80	105.00	50.00	25.00	30.00	13.50	M12x45	69.45ⅹ3.53	1.40	172
3"	48TNLW3-O	NPT 3"	73.00	106.38	134	61.93	124.00	50.00	27.00	34.00	17.00	M16x50	85.32ⅹ3.53	2.15	138
3-1/2"	56TNLW3-O	NPT 3-1/2"	89.00	120.65	152	69.85	136.00	48.00	27.00	34.00	17.50	M16x50	98.02ⅹ3.53	2.55	35
4"	64TNLW3-O	NPT 4"	99.00	130.18	162	77.77	146.00	48.00	27.00	34.00	17.50	M16x50	110.72ⅹ3.53	2.86	35
1/2"	8TNLW3-O	NPT 1/2"	13.00	38.10	54	17.48	46.00	36.00	16.00	19.00	9.00	M8x30	18.66ⅹ3.53	0.25	345

SAE螺纹法兰 NPT螺纹带环槽 - 6000PSI

Normal Size inch	编号 Type	尺寸 Measurement										配用附件 Accessories		单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	F	G	H	I	K	M	O形圈
3/4"	12TNLW6-O	NPT 3/4"	19.00	50.80	71	23.80	55.00	36.00	21.00	22.00	11.00	M10x35	25.00ⅹ3.53	0.50	400
1"	16TNLW6-O	NPT 1"	25.00	57.15	81	27.76	65.00	42.00	25.00	22.00	13.00	M12x50	32.92ⅹ3.53	0.76	400
1-1/4"	20TNLW6-O	NPT 1-1/4"	32.00	66.68	95	31.75	78.00	45.00	27.00	25.00	15.00	M14x50	37.70ⅹ3.53	1.20	400
1-1/2"	24TNLW6-O	NPT 1-1/2"	38.00	79.38	112	36.50	94.00	50.00	30.00	28.00	17.00	M16x55	47.22ⅹ3.53	1.90	400
2"	32TNLW6-O	NPT 2"	51.00	96.82	134	44.45	114.00	65.00	37.00	32.00	21.00	M20x70	56.75ⅹ3.53	3.45	400
2-1/2"	40TNLW6-O	NPT 2-1/2"	63.00	123.83	180	58.73	152.00	80.00	45.00	30.00	26.00	M24x85	69.45ⅹ3.53	6.96	400
3"	48TNLW6-O	NPT 3"	73.00	152.40	208	71.43	178.00	90.00	55.00	34.00	32.00	M30x100	88.27ⅹ5.33	12.00	400
1/2"	8TNLW6-O	NPT 1/2"	13.00	40.49	54	18.24	46.00	36.00	16.00	19.00	9.00	M8x30	18.66ⅹ3.53	0.26	400
