SAE内螺纹法兰无槽 NPT螺纹

Name: SAE内螺纹法兰 无槽 NPT螺纹
Brand: 安扣液压件

sae-straight-4-bolt-flange-with-npt-thread

型号: 12TNLW3

¥0.00 库存:

SAE内螺纹法兰无槽 NPT螺纹产品明细

当前选择：12TNLW3

压力等级：3000PSI

暂无详细描述

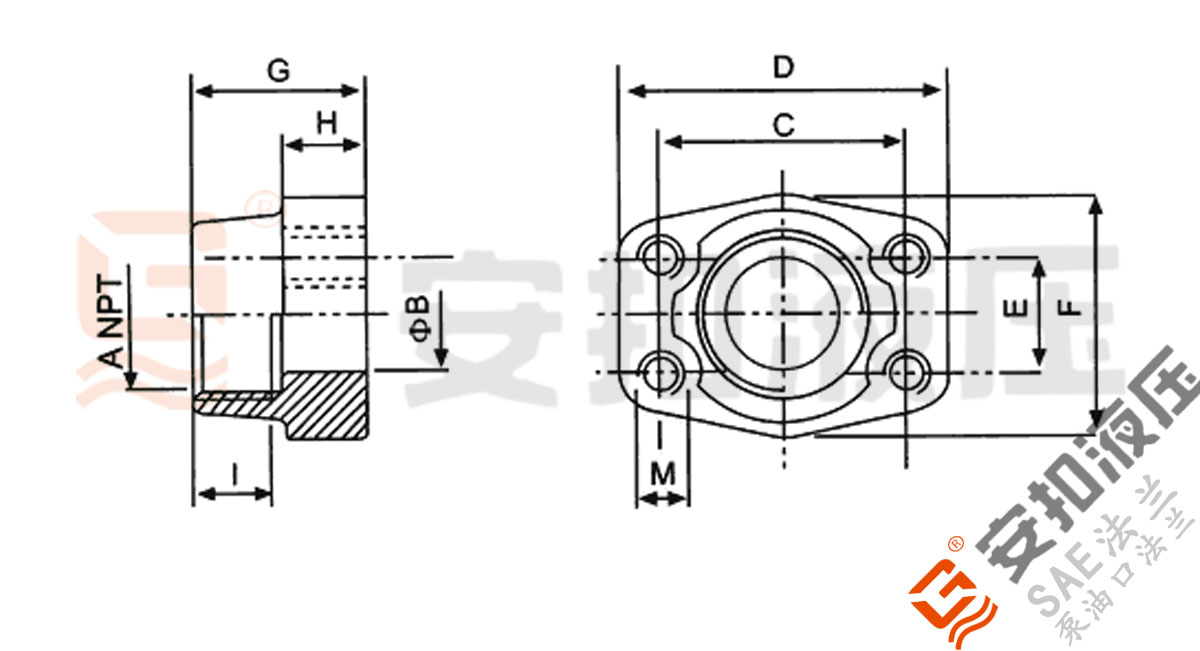

SAE内螺纹法兰无槽 NPT螺纹产品图纸

暂无型号说明

	Carbon steel 碳钢	Stainless steel 不锈钢
Flange only 只有法兰 Flange only 只有法兰

SAE内螺纹法兰无槽 NPT螺纹 - 3000PSI

Normal Size inch	编号 Type	尺寸 Measurement										单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	F	G	H	I	M
3/4"	12TNLW3	NPT 3/4"	19.00	47.63	65	22.23	50.00	36.00	18.00	19.00	M10	0.39	345
1"	16TNLW3	NPT 1"	25.00	52.37	70	26.19	55.00	38.00	18.00	19.00	M10	0.46	345
1-1/4"	20TNLW3	NPT 1-1/4"	32.00	58.72	79	30.18	68.00	41.00	21.00	22.00	M10	0.66	276
1-1/2"	24TNLW3	NPT 1-1/2"	38.00	69.85	93	35.71	78.00	45.00	25.00	24.00	M12	1.05	207
2"	32TNLW3	NPT 2"	51.00	77.77	102	42.88	90.00	45.00	25.00	26.00	M12	1.19	207
2-1/2"	40TNLW3	NPT 2-1/2"	63.00	88.90	114	50.80	105.00	50.00	25.00	30.00	M12	1.40	172
3"	48TNLW3	NPT 3"	73.00	106.38	134	61.93	124.00	50.00	27.00	34.00	M16	2.15	138
3-1/2"	56TNLW3	NPT 3-1/2"	89.00	120.65	152	69.85	136.00	48.00	27.00	34.00	M16	2.57	35
4"	64TNLW3	NPT 4"	99.00	130.18	162	77.77	146.00	48.00	27.00	34.00	M16	2.90	35
1/2"	8TNLW3	NPT 1/2"	13.00	38.10	54	17.48	46.00	36.00	16.00	19.00	M8	0.25	345

SAE内螺纹法兰无槽 NPT螺纹 - 6000PSI

Normal Size inch	编号 Type	尺寸 Measurement										单重 kg	最大工作压力 Kg/cm²
		螺纹规格 Thread	B	C	D	E	F	G	H	I	M
3/4"	12TNLW6	NPT 3/4"	19.00	50.80	71	23.80	55.00	36.00	21.00	22.00	M10	0.50	400
1"	16TNLW6	NPT 1"	25.00	57.15	81	27.76	65.00	42.00	25.00	22.00	M12	0.76	400
1-1/4"	20TNLW6	NPT 1-1/4"	32.00	66.68	95	31.75	78.00	45.00	27.00	25.00	M14	1.20	400
1-1/2"	24TNLW6	NPT 1-1/2"	38.00	79.38	112	36.50	94.00	50.00	30.00	28.00	M16	1.90	400
2"	32TNLW6	NPT 2"	51.00	96.82	134	44.45	114.00	65.00	37.00	32.00	M20	3.45	400
2-1/2"	40TNLW6	NPT 2-1/2"	63.00	123.83	180	58.73	152.00	80.00	45.00	30.00	M24	7.23	400
3"	48TNLW6	NPT 3"	73.00	152.40	208	71.43	178.00	90.00	55.00	34.00	M30	12.60	400
1/2"	8TNLW6	NPT 1/2"	13.00	40.49	54	18.24	46.00	36.00	16.00	19.00	M8	0.26	400
